Bezierfit Batch Scheduler

1 Introduction

The Bezierfit Batch Scheduler allows you to run multiple membrane subtraction jobs in parallel with intelligent GPU resource management. This is especially useful when you need to:

  • Process multiple datasets simultaneously
  • Run parameter sweeps to find optimal settings (e.g., different points_step values)
  • Coordinate dependent workflows (e.g., run Particle Membrane Subtraction first, then Micrograph Membrane Subtraction)

The scheduler handles GPU allocation automatically, ensuring jobs don't compete for the same GPU resources.

Prerequisites

This tutorial assumes MemXTerminator is already installed and usable on your system. If not, please follow the Installation tutorial first.

For single-job runs, continue to use the standard Particle Membrane Subtraction and Micrograph Membrane Subtraction interfaces.

2 Core Concepts

2.1 Job-Level Parallelism

The Batch Scheduler runs multiple independent jobs concurrently. Each job is a complete membrane subtraction task (Particle PMS, Micrograph MMS, or Membrane Analysis) with its own parameters and output directory.

Unlike single-job parallelism (where one job uses multiple GPUs/processes), job-level parallelism lets you queue many jobs and have them execute automatically as GPU resources become available.

2.2 GPU Scheduling

The scheduler manages a pool of available GPUs and allocates them to jobs based on your configuration:

  • gpus: A list of GPU IDs available to the scheduler (e.g., [0, 1, 2, 3]). These correspond to the physical GPU indices on your system.
  • max_running_jobs: Maximum number of jobs that can run simultaneously.
  • policy: How GPUs are assigned to jobs:
    • fill_first (default): Assigns jobs to the lowest-index available GPUs first. Good for keeping some GPUs free for other users.
    • round_robin: Spreads jobs evenly across GPUs in rotation. Good for balanced utilization.

Internally, the scheduler sets CUDA_VISIBLE_DEVICES for each job, so the job only sees its assigned GPU(s).

2.3 Output Isolation

Each job writes to its own isolated directory specified by output_root. This prevents jobs from interfering with each other and makes it easy to compare results from different parameter settings.

2.4 Input Base Directory

CryoSPARC .cs files and STAR files often contain relative paths (e.g., J220/extract/particles.mrcs). Because the batch scheduler runs each job with its working directory set to <output_root>, these relative paths may fail to resolve correctly, resulting in FileNotFoundError.

The input_base_dir argument solves this by specifying the directory from which relative paths inside the input files should be resolved:

  • Auto-inference (default): The scheduler automatically infers input_base_dir from your primary input file. For CryoSPARC layouts (where the .cs or .star file lives directly under a J###/ folder), it infers the parent directory of that J###/ folder (e.g., /data/project/ if the input is /data/project/J220/particles_selected.cs).
  • Manual override: You can explicitly set input_base_dir if the auto-inferred value is incorrect or if your file layout differs from the standard CryoSPARC structure.

Before Auto-parse Input Base Directory

Auto-parsed Input Base Directory Auto-parse Input Base Directory

For example, if you run two PMS jobs with different points_step values, you might use:

  • Job 1: output_root = /runs/pms_step_0.001
  • Job 2: output_root = /runs/pms_step_0.002

The subtracted particle stacks will appear under <output_root>/subtracted/... for each job.

3 Using the GUI

3.1 Open the Interface

Open the MemXTerminator main program, select the Bezierfit mode, then click Batch Scheduler to enter the Batch Scheduler interface:

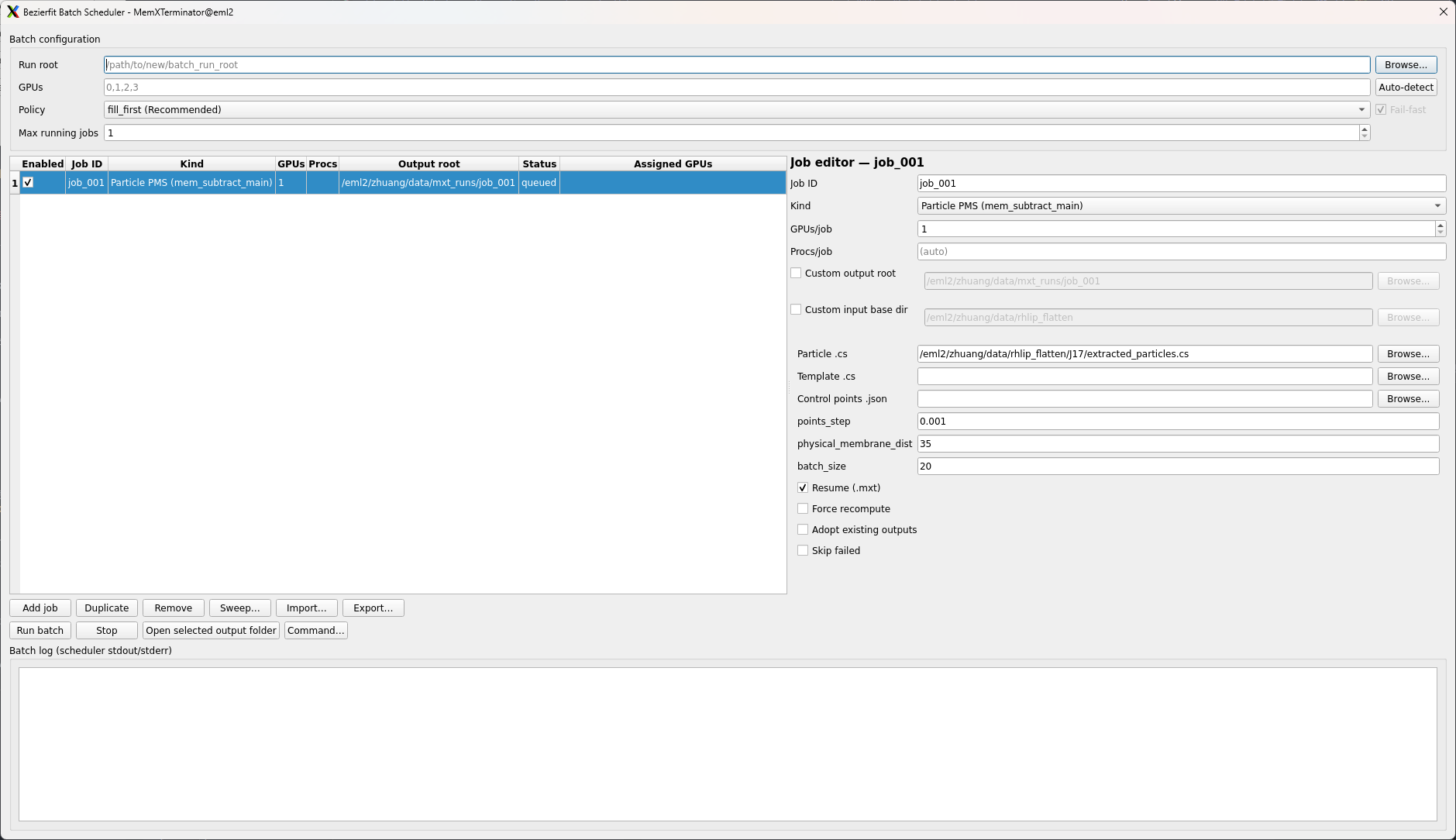

Batch Scheduler interface Bezierfit Batch Scheduler interface

3.2 Add Jobs

Click Add job to create a new job entry. You can add multiple jobs of different types:

  • Particle PMS - Particle Membrane Subtraction
  • Micrograph MMS - Micrograph Membrane Subtraction
  • Membrane Analyze - Bezier curve fitting on 2D averages

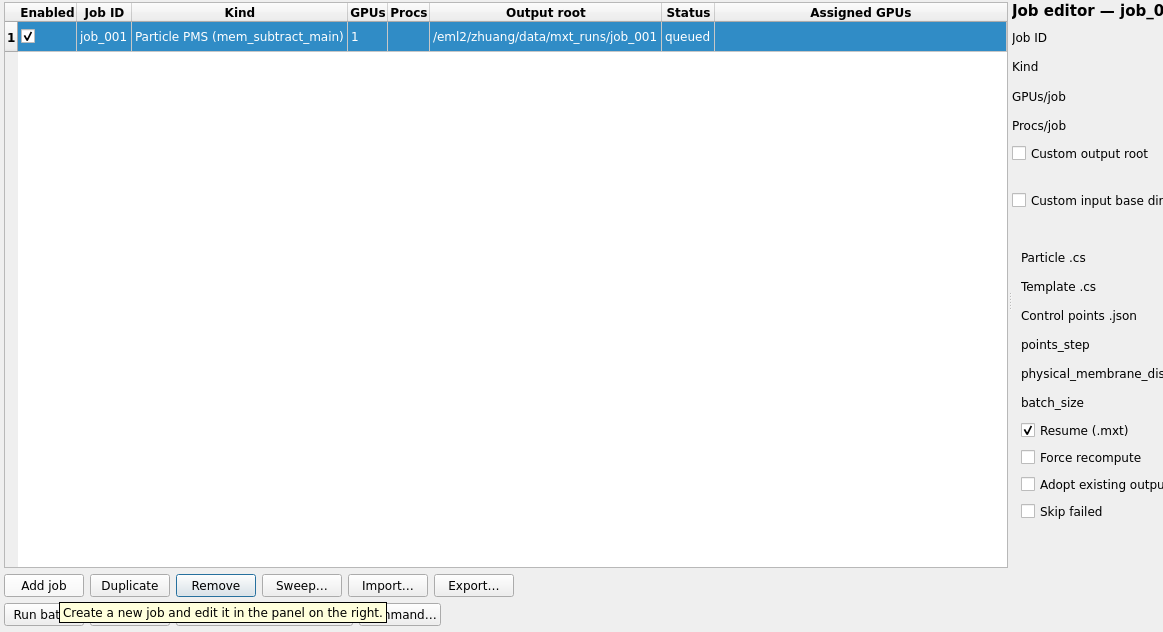

Adding a job Adding a new job to the batch

For each job, configure:

  • Job ID: A unique identifier (letters, numbers, underscores, periods, hyphens)
  • Output Root: Directory where this job's outputs will be written
  • GPUs: Number of GPUs required by this job
  • Procs: Number of worker processes (defaults to number of GPUs)
  • Input Base Dir: Base directory for resolving relative paths in input files (see below)
  • Job-specific parameters: File paths and processing options

Per-Job Input Base Directory

Each job has an Input Base Dir field with a Custom input base dir checkbox and a Browse button.

  • Default (recommended): Leave Custom input base dir unchecked. The field shows the auto-inferred value (read-only) based on your primary input file.
  • Manual override: If the auto-inferred path is incorrect (e.g., non-standard CryoSPARC layout), check Custom input base dir and browse to the correct CryoSPARC project root (the directory containing the J###/ folders) or the directory that makes the relative paths inside your .cs/.star resolve correctly.

3.3 Create Parameter Sweeps

To test multiple parameter values, use the Sweep... button:

  1. Select the job you want to sweep
  2. Click Sweep...
  3. Choose the parameter to vary (e.g., points_step)
  4. Enter values as a comma-separated list (e.g., 0.001,0.002,0.005) or specify a range with start, end, and step
  5. Click Generate

Sweep builder dialog Creating a parameter sweep with the Sweep builder

The sweep builder will create multiple jobs automatically, each with a unique job ID and output root based on the parameter value.

Manual Alternative

You can also create sweeps manually by duplicating a job (select it and click Duplicate), then editing the parameters and output root for each copy.

3.4 Configure Scheduler Settings

Before launching, configure the scheduler settings:

  • GPUs: Enter available GPU IDs (e.g., 0,1,2,3)
  • Max Running Jobs: Limit concurrent jobs (useful if you want to reserve some GPUs)
  • Policy: Choose fill_first or round_robin

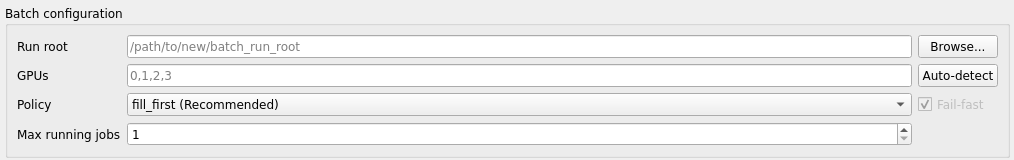

Scheduler settings Configuring scheduler settings

3.5 Run and Monitor

Click Run batch to start the batch. The interface will show real-time status:

  • Queued: Jobs waiting to run
  • Running: Jobs currently executing (with assigned GPUs shown)
  • Success: Completed jobs
  • Failed: Jobs that encountered errors

Batch running Monitoring batch execution progress

The bottom panel shows the batch scheduler log. For per-job logs, open the job's output folder and inspect scheduler_stdout.log / scheduler_stderr.log inside that job's output_root.

3.6 Stop / Cancel

To stop the batch:

  • Stop: Terminates the batch scheduler; running jobs receive SIGTERM and have up to ~30 seconds to clean up
  • Jobs that haven't started yet will be marked as canceled

4 Using the CLI

4.1 Create a Batch Specification File

The CLI uses a JSON specification file. Here's a minimal example that runs two PMS jobs with different points_step values:

{
  "scheduler": {
    "gpus": [0, 1, 2, 3],
    "policy": "fill_first",
    "max_running_jobs": 2,
    "fail_fast": true
  },
  "jobs": [
    {
      "job_id": "pms_step_0.001",
      "kind": "bezierfit_particle_pms",
      "enabled": true,
      "output_root": "/path/to/runs/pms_step_0.001",
      "resources": {
        "gpus": 1,
        "procs": null
      },
      "args": {
        "particle": "/path/to/particles_selected.cs",
        "template": "/path/to/templates_selected.cs",
        "control_points": "/path/to/control_points.json",
        "points_step": 0.001,
        "physical_membrane_dist": 35,
        "input_base_dir": "/path/to/cryosparc_project",
        "resume": true
      }
    },
    {
      "job_id": "pms_step_0.002",
      "kind": "bezierfit_particle_pms",
      "enabled": true,
      "output_root": "/path/to/runs/pms_step_0.002",
      "resources": {
        "gpus": 1,
        "procs": null
      },
      "args": {
        "particle": "/path/to/particles_selected.cs",
        "template": "/path/to/templates_selected.cs",
        "control_points": "/path/to/control_points.json",
        "points_step": 0.002,
        "physical_membrane_dist": 35,
        "input_base_dir": "/path/to/cryosparc_project",
        "resume": true
      }
    }
  ]
}

Exported JSON includes input_base_dir

When you export a batch specification from the GUI, input_base_dir is explicitly included in each job's args for reproducibility, even if it was auto-inferred.

4.2 Run the Batch

Execute the scheduler with either of the following:

MemXTerminator bezierfit-batch \
  --spec /path/to/batch_spec.json \
  --state /path/to/scheduler_state.json

Or:

python -u -m memxterminator.bezierfit.scheduler.cli \
  --spec /path/to/batch_spec.json \
  --state /path/to/scheduler_state.json

Optional CLI overrides:

  • --gpus 0,1,2,3 - Override GPU list
  • --policy round_robin - Override scheduling policy
  • --max_running_jobs 2 - Override max concurrent jobs

Note

In the JSON spec, setting "procs": null (or omitting procs) lets the scheduler choose a safe default (typically procs = gpus for that job).

4.3 Job Kinds and Arguments

Particle PMS (bezierfit_particle_pms)

Argument Required Description
particle Yes Path to particles .cs file
template Yes Path to templates .cs file
control_points Yes Path to control_points.json
points_step Yes Bezier curve sampling step (e.g., 0.001)
physical_membrane_dist Yes Membrane thickness in Å (e.g., 35)
batch_size No Minibatch size (default: 20)
input_base_dir No Base directory for resolving relative paths in input files (auto-inferred from input file if not set)
resume No Resume from .mxt checkpoints (default: true)
force No Force recompute all (default: false)

Micrograph MMS (bezierfit_micrograph_mms)

Argument Required Description
particle Yes Path to particles_selected.star
batch_size No Minibatch size (default: 30)
input_base_dir No Base directory for resolving relative paths in input files (auto-inferred from input file if not set)
resume No Resume from .mxt checkpoints (default: true)
require_particle_mxt No Require PMS completion (default: true)

MMS Dependency on PMS

When require_particle_mxt is true, MMS jobs will report BLOCKED_DEPENDENCY if the corresponding particle stacks haven't been subtracted yet. See Troubleshooting for details.

4.4 Micrograph MMS Example

Here's an example that includes both PMS and MMS jobs:

{
  "scheduler": {
    "gpus": [0, 1],
    "policy": "fill_first",
    "max_running_jobs": 2,
    "fail_fast": true
  },
  "jobs": [
    {
      "job_id": "pms_dataset1",
      "kind": "bezierfit_particle_pms",
      "enabled": true,
      "output_root": "/runs/pms_dataset1",
      "resources": {"gpus": 1, "procs": null},
      "args": {
        "particle": "/data/particles_selected.cs",
        "template": "/data/templates_selected.cs",
        "control_points": "/data/control_points.json",
        "points_step": 0.001,
        "physical_membrane_dist": 35
      }
    },
    {
      "job_id": "mms_dataset1",
      "kind": "bezierfit_micrograph_mms",
      "enabled": true,
      "output_root": "/runs/mms_dataset1",
      "resources": {"gpus": 1, "procs": null},
      "args": {
        "particle": "/data/particles_selected.star",
        "batch_size": 30,
        "require_particle_mxt": true
      }
    }
  ]
}

Note

If you run PMS and MMS jobs in the same batch with require_particle_mxt: true, the MMS job may initially report blocked dependencies while PMS is still running. Once PMS completes, re-running the batch (or using resume) will allow MMS to proceed.

5 Log Files and State

5.1 Scheduler-Level Files

Located in your run root directory (where you launched from or specified):

File Description
bezierfit_batch.run.out Main scheduler stdout/stderr log
scheduler_state.json Real-time scheduler state (updated every ~200ms)

The scheduler_state.json file contains:

  • Current job statuses (queued, running, success, failed, canceled)
  • Free GPU list
  • Job counts and progress
  • Timestamps for each job

5.2 Per-Job Files

Located in each job's output_root directory:

File Description
scheduler_stdout.log Job's captured stdout
scheduler_stderr.log Job's captured stderr
job_spec_resolved.json Resolved job specification (for debugging)
job_result.json Final job result and metadata

5.3 Output Structure

For PMS jobs, subtracted particles appear in:

<output_root>/
└── subtracted/
    ├── xxx_subtracted.mrcs
    ├── xxx_subtracted.mrcs.mxt
    └── ...

6 Troubleshooting

FileNotFoundError on Relative Paths (J###/extract/...)

If jobs fail with errors like:

FileNotFoundError: [Errno 2] No such file or directory: 'J220/extract/particles.mrcs'

This occurs because CryoSPARC .cs and STAR files often store relative paths (e.g., J220/extract/...). The batch scheduler runs each job with its working directory set to <output_root>, so these relative paths cannot be resolved.

Solution: Set input_base_dir to your CryoSPARC project root (the directory containing J### folders):

  • GUI: In the job's Input Base Dir field, check Custom input base dir and browse to your CryoSPARC project directory.
  • CLI/JSON: Add "input_base_dir": "/path/to/cryosparc_project" to the job's args section.

In most cases, the auto-inferred value should work correctly. If you see this error, verify that the inferred path matches your CryoSPARC project layout.

CuPy/CUDA Not Available

If jobs fail with CUDA-related errors:

  1. Verify your CUDA installation (see Installation)
  2. Check that CUDA_VISIBLE_DEVICES isn't already set in your environment
  3. Ensure the GPU IDs in your spec are valid for your system

BLOCKED_DEPENDENCY

MMS jobs report BLOCKED_DEPENDENCY when particle stacks aren't ready:

>>> BLOCKED_DEPENDENCY missing_stack=/path/to/stack.mrcs
REASON: MISSING_PARTICLE_STACK

Causes and solutions:

Reason Solution
MISSING_PARTICLE_STACK PMS job hasn't created the output yet. Wait for PMS to complete.
MISSING_PARTICLE_MXT PMS job didn't write .mxt checkpoint. Re-run PMS or set require_particle_mxt: false.
PARTICLE_MXT_STATUS_NOT_SUCCESS PMS job failed. Check PMS logs and fix the issue.

GPU Out of Memory (OOM)

If jobs fail with CUDA OOM errors:

  1. Reduce max_running_jobs: Fewer concurrent jobs = more memory per job
  2. Reduce procs: Fewer worker processes per job
  3. Reduce batch_size: Smaller batches require less memory
  4. Request more GPUs per job: Spread computation across multiple GPUs

Resume Behavior

Jobs use .mxt checkpoint files for resume:

  • Resume works: Set "resume": true in job args. Already-completed particle stacks are skipped.
  • Force recompute: Set "force": true to ignore checkpoints and reprocess everything.
  • Adopt existing outputs: Use "adopt_existing_outputs": true if you have outputs from an older run without .mxt files.

Stopping a Batch

From GUI: Click the Stop button. Running jobs receive SIGTERM and have up to 30 seconds to clean up.

From CLI: Send SIGTERM to the scheduler process (Ctrl+C or kill <pid>). The PID is stored in bezierfit_batch.pid.

Stopped jobs can be resumed later by re-running with "resume": true.

7 Summary

The Bezierfit Batch Scheduler streamlines multi-job workflows:

  1. Plan your jobs: Define job IDs, output roots, and parameters
  2. Configure GPU scheduling: Set available GPUs, max concurrent jobs, and allocation policy
  3. Run and monitor: Track progress via GUI or state files
  4. Review outputs: Each job's results are isolated in its own output_root

Comments
